Chlorine Evolving Anode Manufacturer
Every hour your electrochlorination system runs on an underperforming coating, you’re losing output and burning through energy. Optimum Anode Technologies is a chlorine-evolving anode manufacturer that engineers ChlorOxide™ coatings for peak electrochemical selectivity, maximum chlorine output, and extended anode life.
ChlorOxide™: High-Performance Anodes for Electrochlorination
ChlorOxide™ is Optimum Anode Technologies’ proprietary series of chlorine-evolving anode coatings, specifically formulated for the efficient production of chlorine, chlorate, and sodium hypochlorite.
Built on a ruthenium-based precious metal oxide foundation combined with valve metal and base metal oxides, ChlorOxide™ delivers exceptional electrochemical selectivity and cost-effective performance across demanding electrochlorination applications.
For complete coating specifications, download our Optimum Oxides product brochure.
Applications for ChlorOxide™ Chlorine Evolving Anodes
Typical Applications:
- Seawater and Brine Electrochlorination
- Swimming Pool and Pool Industry Electrochlorinators
- Electrolytic Production of Sodium Chlorate
- Electrolytic Production of Sodium Chlorite

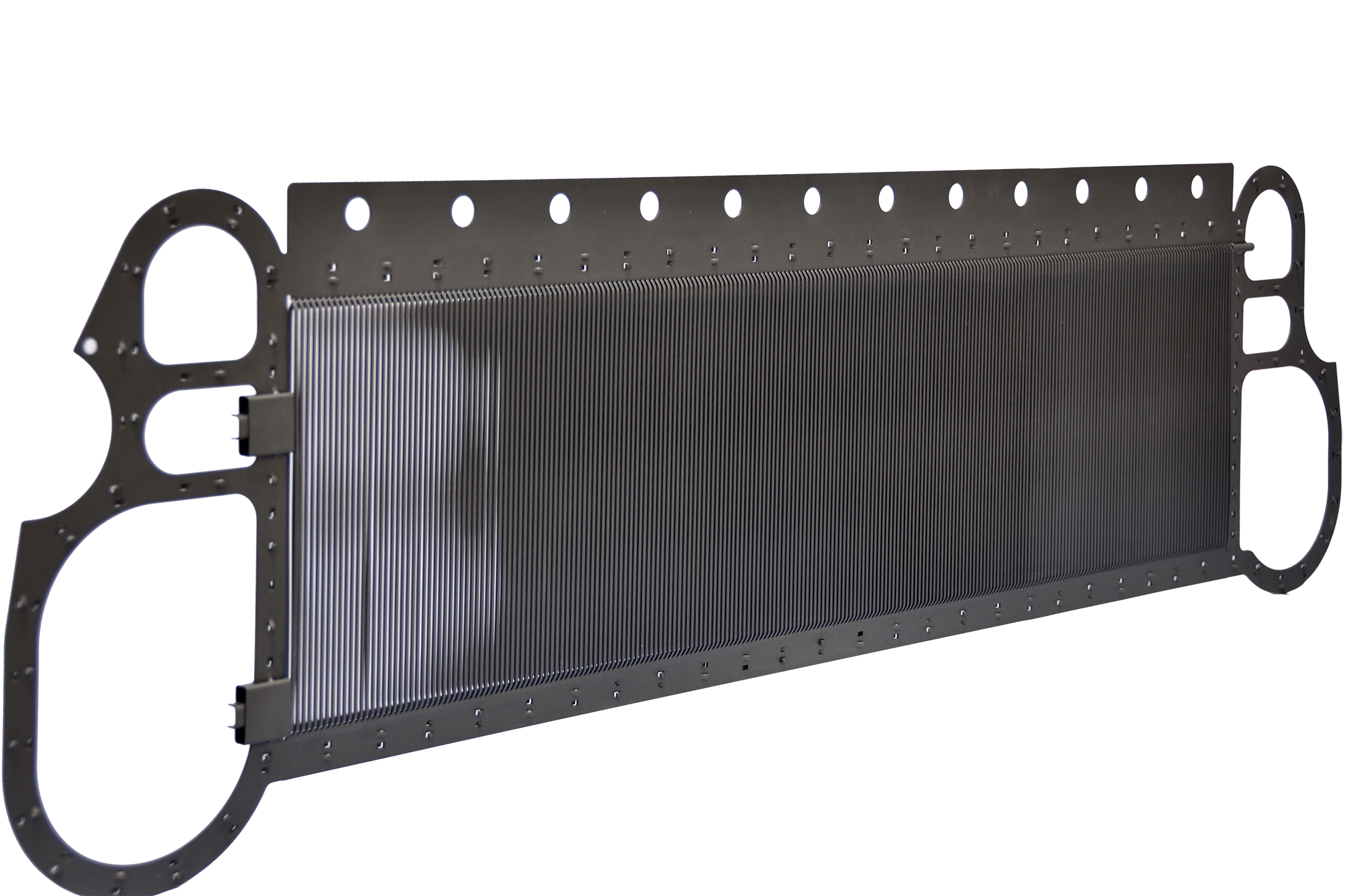

- Membrane Chlor-Alkali Cells
- Mercury Chlor-Alkali Cells
- Diaphragm Chlor-Alkali Cells
Available Shapes:
• Mesh
• Sheet
• Louvre Type Electrodes
• Rods
• Wire
• Custom Fabricated Parts
Typical Attributes
- Typical oxide loading 5-30 g/m2
- Standard support substrate is titanium although the coating can be applied to titanium
clad as well as tantalum. - Surface preparation is carefully controlled to ensure maximum adhesion and the
conductivity to the coating. - In-process control and monitoring of the coating application and thermo decomposition.
- Efficient over potential for chlorine evolution.
- Highly efficient for the generation of chlorine and chlorine compounds.
- Quality is assured through in process controls but also verified by final quality control that is inclusive of weight gain, XRF and SEP measurements as well as process specific adhesion tests.
- All shipments are accompanied by Optimum Anode Technologies quality certificate and guarantee of workmanship.
- Packaging is specifically created to assure the product we produce arrives safely at our customers’ point of use.
technical resources
You’ll find product information, reactive metals information, corrosion charts, calculators and much more in the TITAN Technical Resource Center.
FAQs About Anodes for Electrochlorination
What is a chlorine-evolving anode?
A chlorine-evolving anode is a dimensionally stable anode with a specialized catalytic coating that efficiently generates chlorine through electrochemical oxidation. These anodes are critical components in electrochlorination systems used across water treatment, pool sanitation, and chlor-alkali production.
What substrates are used for anodes for electrochlorination?
Titanium is the standard substrate for most electrochlorination anodes due to its lightweight strength and exceptional corrosion resistance. ChlorOxide™ coatings can also be applied to titanium-clad and tantalum substrates, depending on application requirements.
How long do ChlorOxide™ coatings last?
Coating life depends on operating conditions, including current density, electrolyte composition, and temperature. We work directly with each customer to recommend the optimal coating formulation and oxide loading for maximum service life in their specific environment.
Can ChlorOxide™ coatings be applied to existing anodes?
Yes. Titan Metal Finishing offers recoating services for existing titanium and compatible substrates, extending the operational life of your anodes for electrochlorination without the cost of full replacement. Contact our engineering team to evaluate your recoating needs.
