Poor rack contact sends finished parts straight to the scrap bin. RIGHTech Fabrications, a division of Titan Metal Finishing, has manufactured aluminum anodizing racks for production plating and anodizing operations for over 50 years.
METAL FINISHING ALUMINUM RACKS
Metal finishing aluminum racks hold aluminum components in a fixed position throughout anodizing, electroplating, and powder coating operations. Uniform part exposure throughout each process directly determines surface treatment quality and consistency.
The right aluminum anodizing rack maintains reliable electrical contact, controls current distribution, and withstands repeated strip cycles without degrading. Material selection, contact point placement, and rack geometry all affect finished part quality and production efficiency.
RIGHTech Fabrications: Aluminum Anodizing Rack Products
RIGHTech Fabrications, based in Northbrook, Illinois, manufactures the aluminum anodizing rack products sold through Titan Metal Finishing. The RIGHTech product line covers standard and custom configurations, including racks, hooks, splines, discs, and contact clips sized to your specific part geometry. Download the RIGHTech catalog for full product specifications and ordering details.
RIGHTECH BROCHURE
Find the latest product information, for high quality anodizing and plating equipment in our new RighTECH brochure. We are the industry leader in the design and fabrication of racks, baskets, and coils for metal finishers.

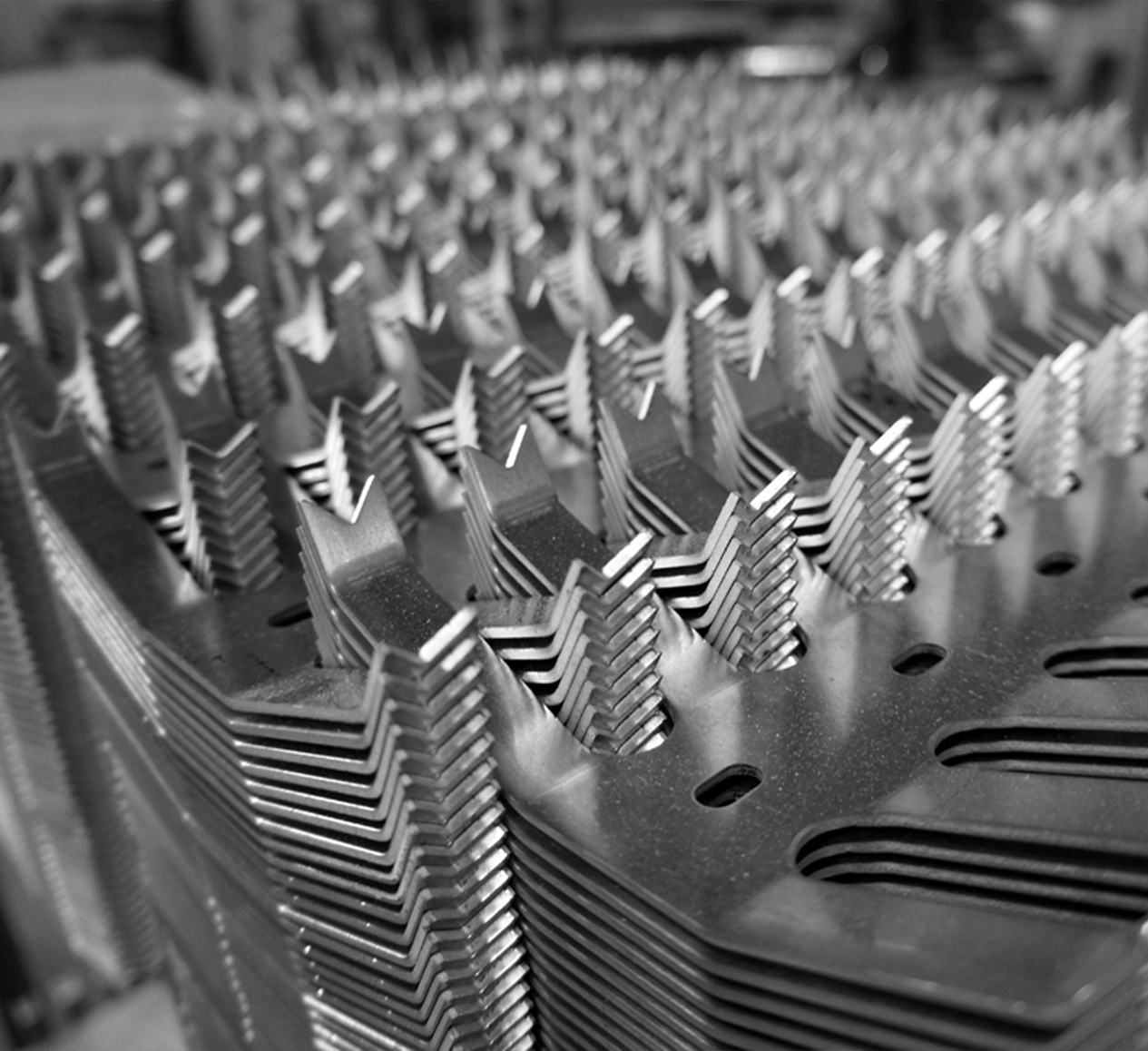

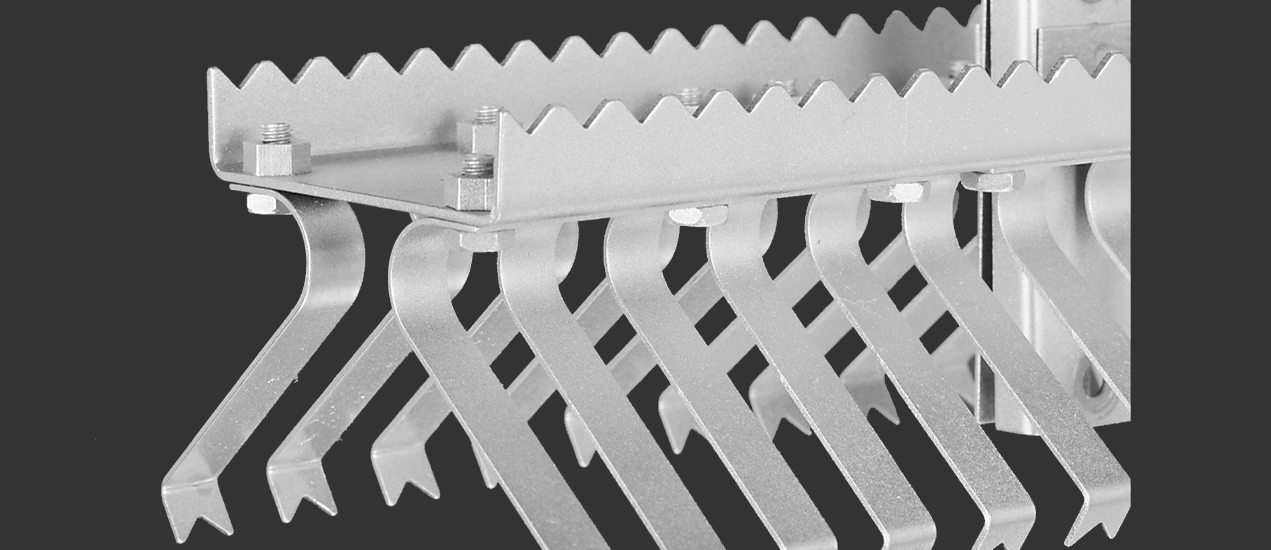

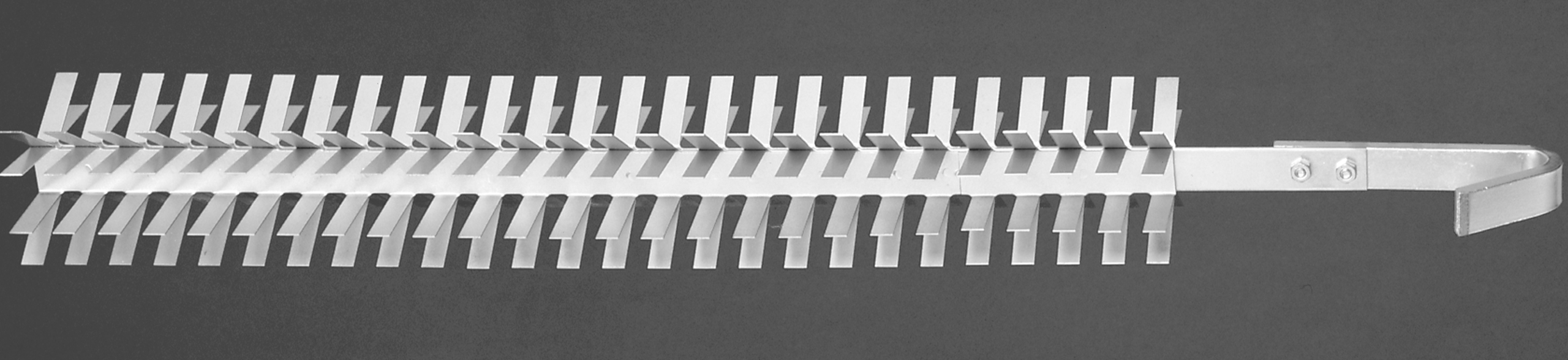

aluminum racks and clips
disc rack assembly

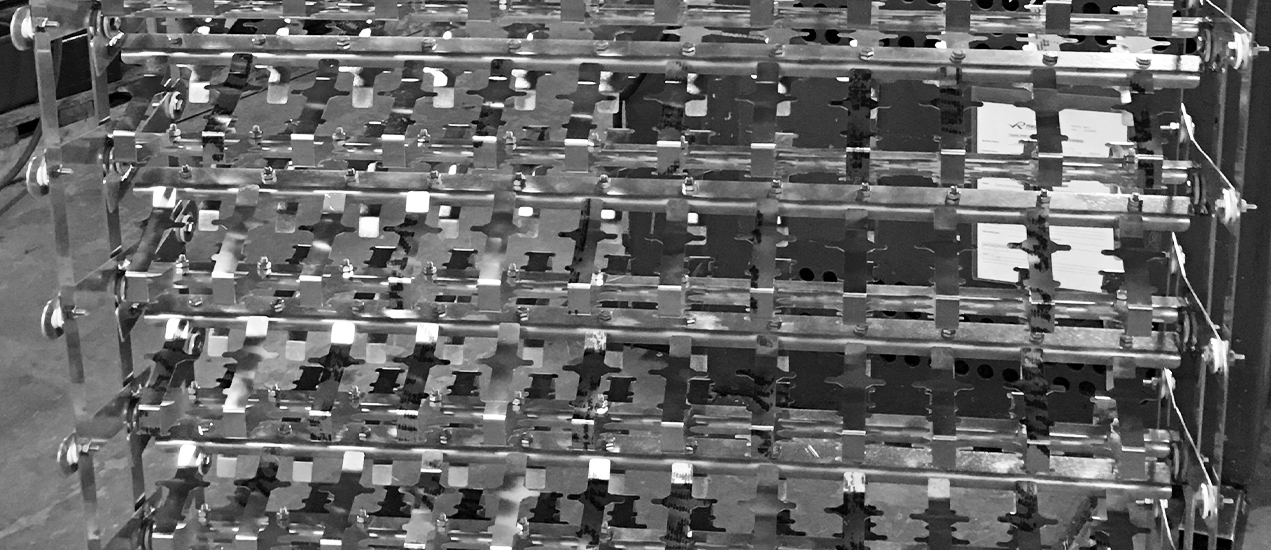

box rack assembly

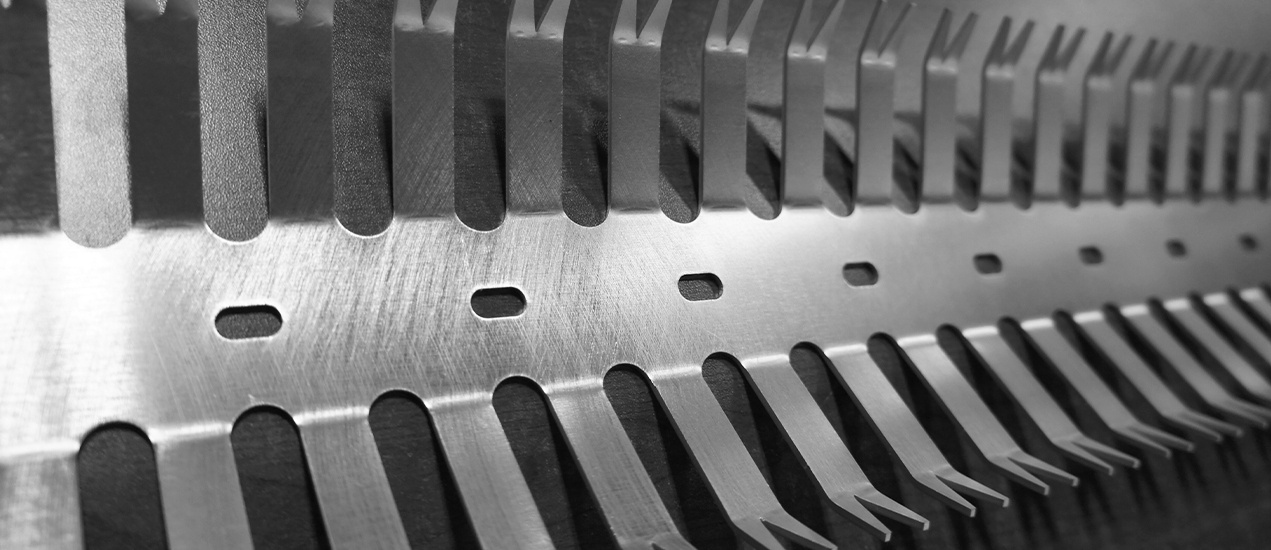

aluminum clips
Aluminum Anodizing Rack Applications: Anodizing, Electroplating & Powder Coating
Anodizing:
Aluminum anodizing racks for sulfuric acid and hard coat processes must maintain consistent electrical contact while preventing unwanted current flow at insulated contact points.
Purpose: To increase corrosion resistance, wear resistance, and adhesion for paint primers and glues.
Process: Aluminum parts are immersed in an acid electrolyte bath and an electric current is passed through, creating an oxide layer on the surface.
Racks: Non-conductive racks or racks coated with insulating materials prevent unwanted electrical contact points.
Electroplating:
Aluminum racks for electroplating must complete the electrical circuit between the part and the rectifier while keeping contact points to a minimum to prevent plating defects.
Purpose: To deposit a layer of metal such as nickel or chrome on aluminum surfaces for improved aesthetics, corrosion resistance, and durability.
Process: The aluminum part acts as the cathode in an electrochemical cell, with the plating metal serving as the anode.
Racks: Conductive racks complete the electrical circuit. Contact points stay minimal to reduce plating defects.
Powder Coating:
Powder coating racks must tolerate repeated high-heat cure cycles while limiting contact areas to prevent defects in the finished coating.
Purpose: To provide a durable, decorative finish resistant to chipping, scratching, and fading.
Process: A dry powder sprays onto aluminum parts and cures under heat to form a solid coating.
Racks: Racks withstand high cure temperatures and limit contact surface area to avoid defects in the finished coating.
Design Considerations for Aluminum Racks
Material: Aluminum anodizing racks require material selection matched to the chemical and thermal demands of each process, with stainless steel, titanium, and aluminum alloys each performing differently depending on bath chemistry and operating temperature.
Insulation: In anodizing operations, operators coat rack sections that should not conduct electricity with insulating materials to eliminate unwanted current at contact points.
Contact Points: Minimizing the number of contact points between the rack and the part prevents blemishes and surface defects in the finished product. RIGHTech engineers aluminum anodizing racks in adjustable configurations that accommodate varied part geometries and withstand repeated chemical exposure and high-temperature cycles without degrading.
Aluminum Anodizing Rack Care and Maintenance:
Aluminum anodizing racks perform under harsh chemical and thermal conditions, making routine care essential to production consistency. Neglecting maintenance shortens rack service life, compromises electrical contact, and introduces defects that trace back to the rack rather than the process.
Here’s what care and maintenance should look like:
Cleaning: Regular cleaning is essential to remove residues from previous finishing processes, which can affect the quality of subsequent treatments.
Inspection: Racks should be inspected for wear and damage, particularly at contact points, to ensure they provide consistent results.
Repair: Damaged racks should be repaired or replaced promptly to maintain the integrity of the finishing process.
technical resources
You’ll find product information, reactive metals information, corrosion charts, calculators and much more in the TITAN Technical Resource Center.
Frequently Asked Questions About Aluminum Racks
How long do aluminum racks last?
Service life depends on process chemistry, current density, and strip cycle frequency. Most aluminum anodizing racks require replacement or refurbishment once repeated alkaline and nitric acid strip cycles degrade contact points.
What is the difference between aluminum and titanium racks for anodizing?
Aluminum racks cost less and strip easily in standard alkaline or nitric acid solutions, making them the default choice for most anodizing operations. Titanium racks carry a higher upfront cost but outlast aluminum in processes where strip chemistry would degrade aluminum too quickly.
Can you use aluminum anodizing racks for hard coat applications?
Yes. RIGHTech manufactures aluminum anodizing racks for both Type II sulfuric acid and Type III hard coat operations, with configurations that maintain reliable electrical contact under the higher current densities hard coat requires.
Do you offer custom metal finishing on aluminum racks?
RIGHTech Fabrications produces standard and fully custom metal finishing aluminum rack configurations sized to your specific part geometry, production volume, and process chemistry.
