ANODE BASKETS
AND ANODE HOOKS

Your resource for high quality anodizing and plating equipment. We are the industry leader in the design and fabrication of racks, baskets, and coils for the Metal Finishing industry.

get quote

premiere supplier of corrosion resistant equipment

Through TITAN’s experienced technical support, commitment to service and superior manufacturing quality, TITAN is dedicated to being the premiere supplier of corrosion resistant equipment to the Metal Finishing, Plating and Anodizing Industries. TITAN anode baskets are built to the highest standards in the industry. As one of the largest stocking manufacturers of raw material, TITAN is pleased to provide customers with fast turnaround. For additional information on considerations for basket sizing, see the Quick Reference Guide for Anode Baskets located in Technical Resource Section If you have any questions about equipment for your application, please call TITAN Metal Finishing toll-free at (877) 487-5050. TITAN stocks common sizes of anode baskets and may be able to fulfill your order from our inventory. If a product is not in stock, we can manufacture and ship to you in two weeks.
CONTACT US

anode baskets
and hooks

TITAN Metal Finishing anode baskets are fabricated using the latest design and welding technology for maximum strength and longest service life.

Our time tested products are designed by our engineering and sales team with over 50 years experience.

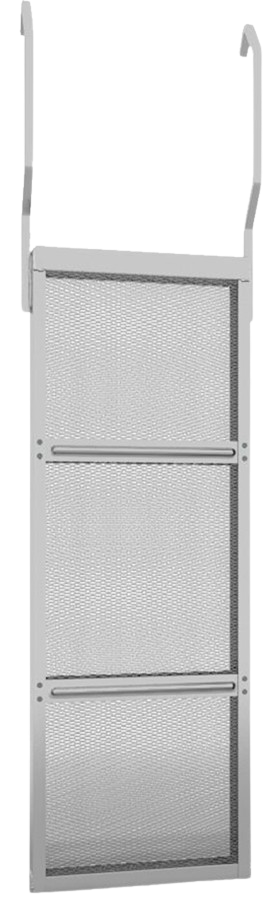

TITANIUM ANODE BASKETS

standard hooks

anode hooks

custom anode baskets

If your anode basket requirements call for other than standard configurations, consult with TITAN for alternatives and custom basket possibilities. Our extensive history in custom anode basket manufacturing gives you the ability to work directly with TITAN’s equipment experts to create the exact configuration you’re looking for.

Talk with TITAN. Together we’ll find the answer to your basket dilemma. If you have any questions about equipment for your metal finishing application, please call to speak with Titan Metal Finishing Equipment (805) 487-5050 or toll-free (877) 487-5050.

get quote

Sizing and styles:

  • Rectangular Baskets: 2-1/2” x 6″
    – Standard Stock Lengths include 18″, 24″, 30″, 36″.
       Other lengths are built to order.
  • Round Baskets: 2 1/2″ Diameter x Length
    – Standard Stock Lengths include 18″, 24″, 30″, and 36″.
  • Other lengths are built to order.

considerations for basket sizing:

  • Baskets should be 2″ to 4″ shorter than the longest  piece of work.
  • Baskets should be 1″ above the solution level.
  • Hook length is measured from the top of anode bar to 1″ above the solution level.
  • Quantities for rectangular baskets should be three (3) 2 ½” x 6″ baskets for every two feet above the bar.

basket amperage & anode hooks

Rectangular Baskets are standard with 50 AMPS/Basket Double Contact Hooks. Higher Amperage is available (i.e., 100 Amps, 150 Amps and 200 Plus Amps).

To determine the AMPS needed per basket, please use the following formula:

AMPS Needed Per Basket
Total AMPS of TANK
Total # of Baskets

Amperage Rating Per Anode Hook:
25AMP = 1/8″ x 1″ Double Contact Hook or 3/8″ Square Bar Hook
50AMP = 1/4″ x 1″ Double Contact Hook or 1/2″ Square Bar Hook
75AMP = 3/8″ x 1″ Double Contact Hook or 5/8″ Square Bar Hook
100AMP = 1/2″ x 1″ Double Contact Hook or 3/4″ Square Bar Hook

ADDITIONAL FEATURES:

  • Inverted “V” Lift Hooks
  • Inverted “U” Hooks
  • “T” Handle Lift Hooks
  • Reverse Lift Hooks for easier access in lifting baskets
  • Submergible Hooks
  • Loading Chutes for easier anode loading
  • Mesh on 4 sides of basket for greater anode to cathode ratio

for heavy duty applications:

  • Heavier hooks for strength and current carrying capabilities
  • Ti Clad Copper Hooks for higher amperage rating
  • Thicker mesh material to minimize bulging of basket
  • Thicker side channel construction

technical resources

You’ll find product information, reactive metals information, corrosion charts, calculators and much more in the TITAN Technical Resource Center.

access now

mesh selection and anode quantities

Three Mesh Types Available: Perforated, Mini-Expanded and Poly Propylene

Perforated:
  • ½” Diameter on 11/16″ staggered centers
  • 50% mesh open area

Mini-Expanded:
  • 3/16″ SWD x 1/2″ LWD
  • 65% mesh open area

Perforated Poly Propylene:
  • 1/4″ Diameter on 3/8″ staggered centers
  • 40% Mesh Open Area

EXAMPLES - quantities of anode MATERIAL to fill baskets (LBS./INCH of length)

Rectangular (2-1/2″ x 6″ x L)
  • Nickel Buttons: 3lbs.
  • Copper Chunks: 2- 1/2 lbs
  • 2″ Copper Balls: 2lbs.

Round (2-1/2″ Dia. x XL)
  •  Nickel Buttons: .80 lbs.
  • Copper Chunks: .75 lbs.
  • 2″ Copper Balls: 625 lbs.



TITAN Anode Baskets
Request For Quote

Request will go directly to the TITAN Metal Finishing Equipment Team. We’ll be in touch with you shortly.

Together, we determine the specifics of your application. We work with you to identify the details and nuances of the technical, operational, longevity aspects of your application and your projected goals.

If you need immediate assistance, we invite you to call us:

Phone: (805) 487-5050
Fax: (805) 487-5047
Email: finishing@titanmf.com

California Office
352 Balboa Circle,
Camarillo, CA 93012 USA
Please note: If your Anode Basket requirements call for other than standard configurations, consult with TITAN for alternatives and custom basket possibilities.
Determining Hook Length: Hook Length is measured from underside of hook to the top of basket. Standard Basket Amperage: Rectangular Baskets are standard with 50 Amps/Basket with Double Contract Hooks. Round Baskets are standard with 25 Amps/Basket with Double Contact Hook.
